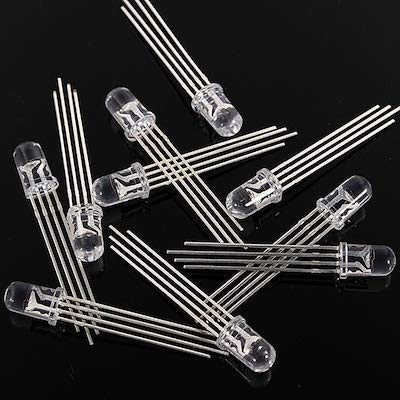

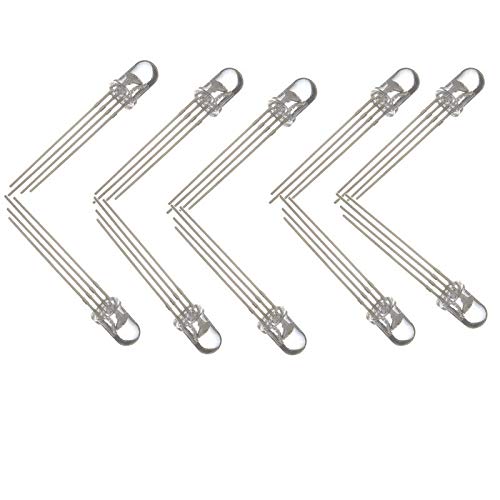

RGB Multi-Color LED Module (Common Anode, 5mm)
Description
5mm high-brightness RGB LED with common anode configuration. Emits red, green, and blue light for color mixing and display applications. Ideal for indicators, Arduino projects, decorative lighting, and DIY electronics.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Jameco ValuePro | RGB LED CA‑10 |
| Jameco ValuePro | MCDL‑5013RGBC‑TL‑A |
| Adafruit Industries | 2530 |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Technical Specifications
| Manufacturer | Generic |
| Model Type | Common Anode RGB LED |
| Package | 5mm Round (Clear Lens) |
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Brightness | High |
| Current Consumption | Low |
| Operating Voltage | 2.0–3.2V (per color) |
| Forward Current (mA) | 20 (per channel) |
| Power Efficiency | High Luminous Output, Low Heat |
| Material | Epoxy Resin, Gold Wire Leads |
| Mounting Type | Through Hole |
| Item Size | 5mm |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions (L × W × H) | 1 × 1 × 1 cm |
