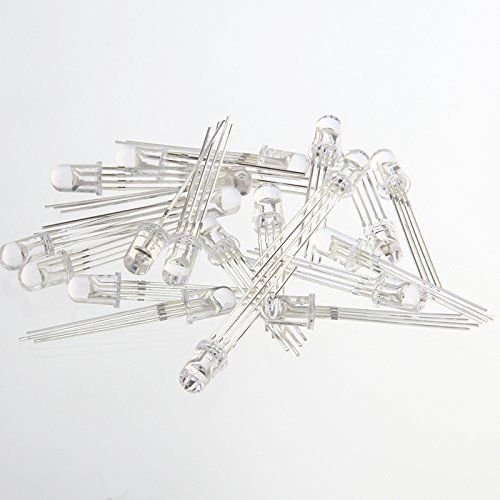

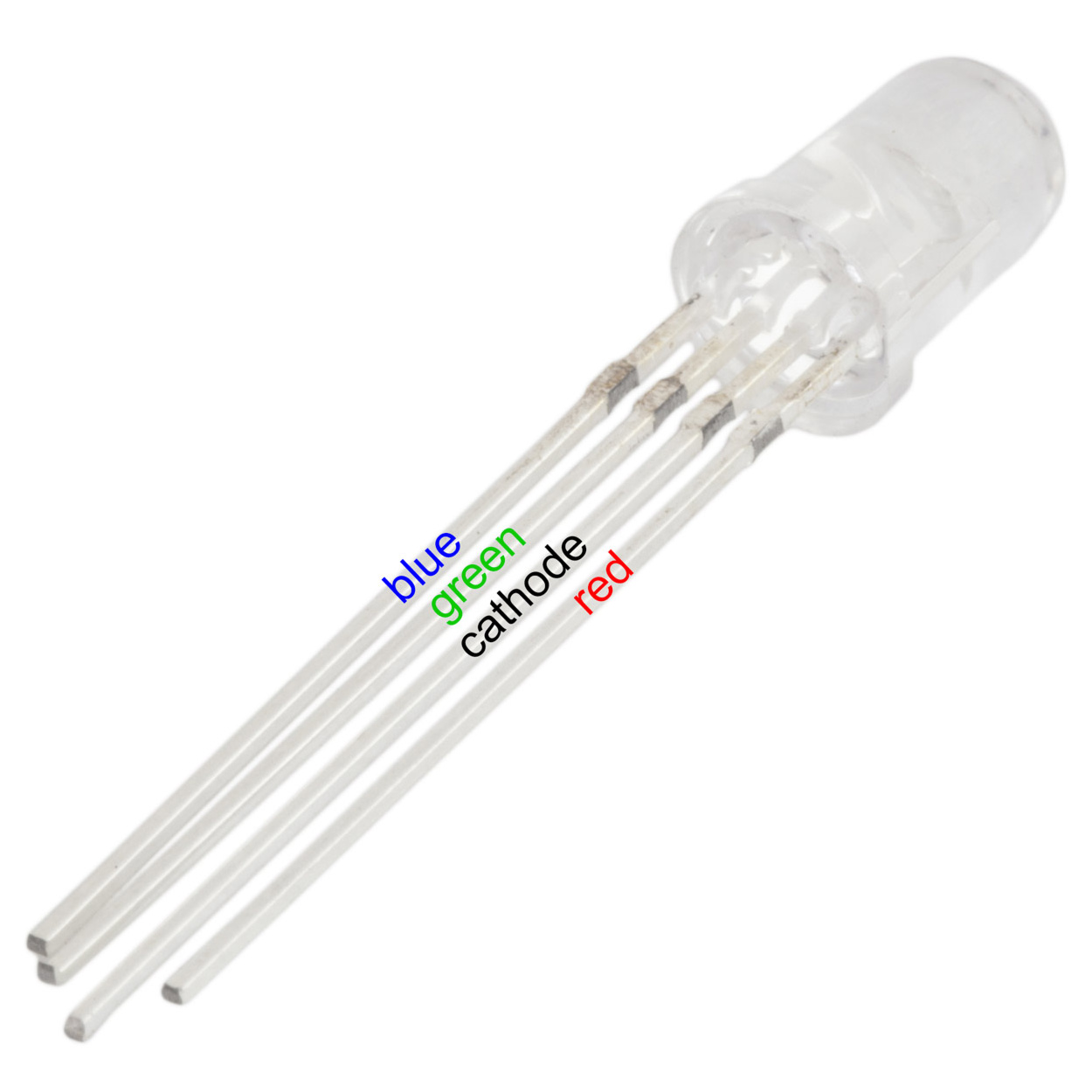

RGB Multi-Color LED Module (Common Cathode, 5mm)
Category
Subcategory
EDD - Discrete Semiconductor: Diodes, Transistors, LDR, LED
Description
5mm common cathode RGB LED with transparent lens for multi-color indication. Combines red and green-yellow emission in a single through-hole package. Ideal for indicator panels, DIY electronics, and visual feedback systems.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| ED Series / XINGLIGHT | XL-A524SURSYGC |
| XINGLIGHT | XL-A524SURSYGC |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Technical Specifications
| Manufacturer | XINGLIGHT |
| Model No. | XL-A524SURSYGC |
| Package | Plugin, D = 5mm |
| Forward Current (mA) | 20 |
| Color Temperature | - |
| Peak Wavelength (nm) | 640 (Red) |
| 572 (Green | Yellow) |
| Luminous Intensity (mcd) | 600 (Red) |
| 550 (Green | Yellow) |
| Lens Color | Colorless Transparent |
| Diode Configuration | Common Cathode |
| Wavelength – Dominant (nm) | 635–640 (Red) |
| 565–575 (Green | Yellow) |
| Operating Temperature (°C) | -20 ~ +85 |
| Illumination Color | Red, Green-Yellow |
| Viewing Angle | 30° |
| Lamp Holder Type | 5mm Round Head |
| Power (mW) | 50 |
| Forward Voltage (Vf) | 2.3V (Red) |
| 2.4V (Green | Yellow) |
| Mounting Type | Through Hole |
| Compliance | RoHS |
