EDD-00002-C
Tested by Z2M

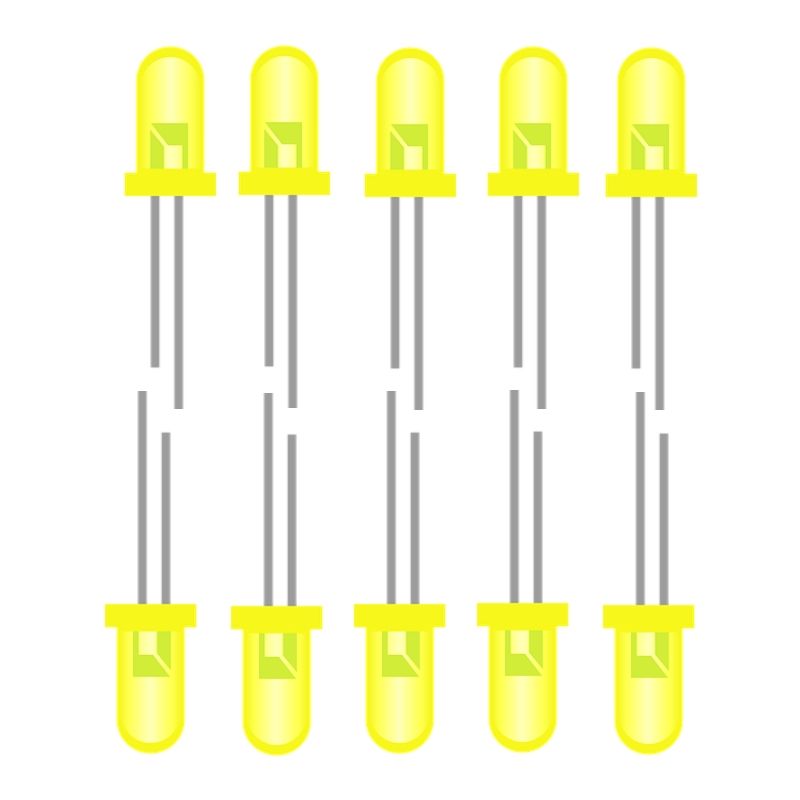

Yellow LED (10mm, DIP Type)
Category
Subcategory
EDD - Discrete Semiconductor: Diodes, Transistors, LDR, LED
Description
- Yellow Light Emitting Diode (LED) used as an indicator in electronic circuits.
- Emits bright yellow light with a transparent body, ideal for TVs, monitors, telephones, and computers.
- Suitable for general indicator applications, prototyping, and project indicator panels.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Generic | DIP-10MM-YELLOW |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Technical Specifications
| Case/Package | DIP |
| Diameter (mm) | 10 |
| Mounting Type | Through Hole |
| Lens Appearance | Transparent |
| Color | Yellow |
| Forward Voltage (V) | 3.2 |
| Forward Current (mA) | 30 |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions (L × W × H) | 1 × 1 × 1 cm |
