EMS-00001-A
Tested by Z2M

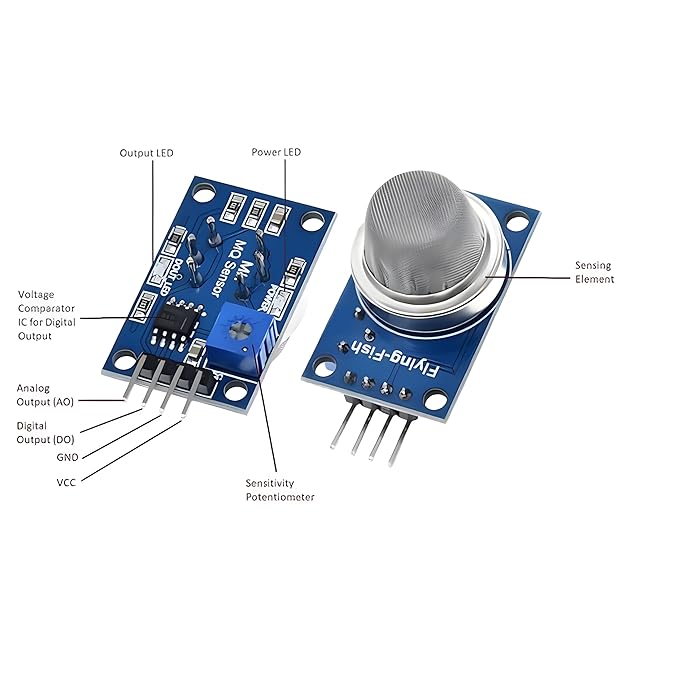

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module
Description
- The MQ-2 Gas Sensor Module detects combustible gases such as LPG, methane, hydrogen, alcohol vapor, and smoke.
- It uses a SnO₂ sensing element and provides both analog and digital outputs with adjustable sensitivity.
- Ideal for gas leakage detection, safety systems, and Arduino-based environmental monitoring projects.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Hanwei Electronics Group Corporation | MQ-2 |
| Zhengzhou Winsen Electronics Technology Co., Ltd. | MQ-2 |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Technical Specifications
| Sensor Model | MQ-2 |
| Detection Range | 300 – 10,000 ppm |
| Detectable Gases | LPG, Butane, Propane, Methane (CH₄), Hydrogen (H₂), Alcohol, Smoke, CO |
| Sensing Material | Tin Dioxide (SnO₂) |
| Operating Voltage | 5V DC |
| Digital Output Voltage | 0V or 5V (TTL Logic) |
| Analog Output | Yes |
| Sensitivity Adjustment | Onboard Potentiometer |
| Preheat Time | 20 seconds (minimum) |
| Dimensions (mm) | 36 × 20 × 21 |
| Weight (g) | 8 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions (cm) | 4 × 4 × 4 |
