Soil Moisture sensor
Description

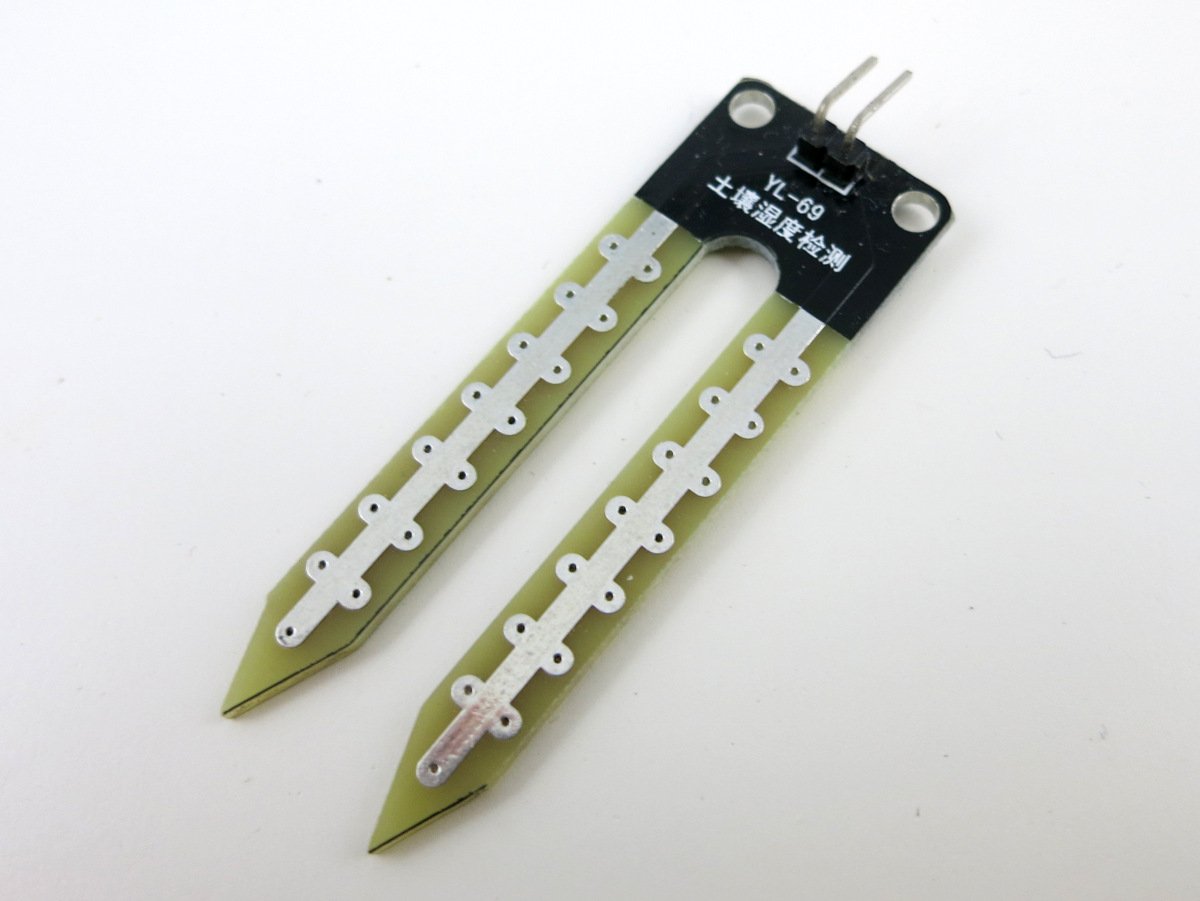

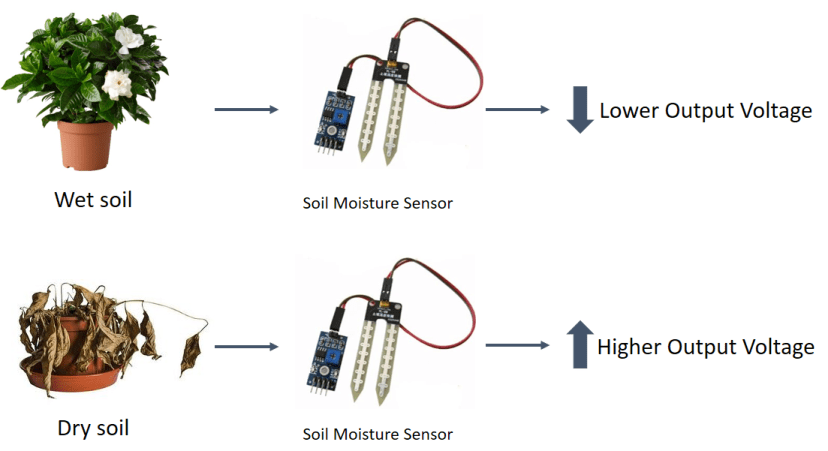

- The Soil Moisture Sensor Module (YL-69 + FC-28) is a resistive soil humidity detection device used to measure water content in soil.
- It provides both analog (AO) and digital (DO) outputs with adjustable sensitivity using an onboard LM393 comparator.
- Ideal for smart irrigation systems, plant monitoring, Arduino, and IoT-based environmental projects.
Manufacturer Details
| Manufacturer | Part Number |
|---|---|
| Sensor Probe Manufacturer | Generic / OEM – YL-69 |
| Comparator Module Manufacturer | Generic / OEM – FC-28 |
| IC Manufacturer | Texas Instruments – LM393 |
Vendor Suppliers
| Vendor | SKU | Link |
|---|---|---|
| No listings | ||
Application Resources
Technical Specifications
| Sensor Type | Resistive Soil Moisture Sensor |
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Analog (AO) and Digital (DO) |
| Digital Output | 0 or 1 (TTL Logic) |
| Measurement Principle | Resistance-based conductivity measurement |
| Sensitivity Adjustment | Onboard Potentiometer (for digital threshold) |
| Probe Dimension | Approx. 6 cm × 3 cm |
| Cable Length | 20 cm |
| Interface Pins | VCC, GND, DO, AO |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions (cm) | 8 × 6 × 3 |
